Limestone rotary dryer
Specifications：
The rotary dryer was used to drive off moisture before grinding and pelletizing the limestone. Drying is often a vital step in the initial stages of limestone processing. Limestone dryers, or rotary dryers, are utilized when subsequent manufacturing steps require a reduction in moisture in order to precondition the material.
Application Range：Widely used in building materials, metallurgy, and chemical industry.
Applicable Materials：coal, coal slurry, slag, industrial waste, and clay stone
Low energy consumption
Our rotary dryer adopts reasonble running parameter; coal and electricity consumption can be 20% to 30% lower than common dryer.
High output capacity
Output capacity can be increased by more than 20%. Taida rotary kiln has been widely applied to mining and metallurgy industry.
With high automation level
The whole production line needs only one person to supervise. finished products can be directly packed and stored.
More durable
Service life can last for 8 to 10 years. with good maintenance, it can be used for longer time.
With less quick-wear parts.
Important parts adopt advanced thermal processing technology. Replace period can reach 5000 hours.
More environment friendly
Adopts multi-class dust collecting method, clean exhaust gas emission can totally meet national standard.
Working Principle

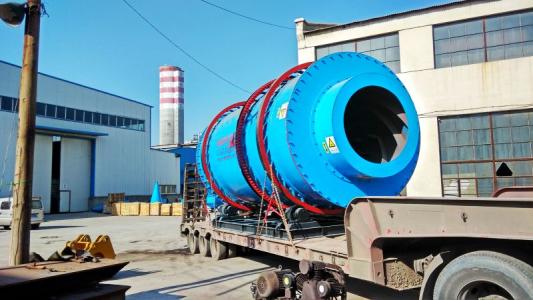

Latest Delivery
Project Case
Henan 10TPH Dry Mortar Production Line
Attracted by triple-pass dryer manufactured by china famous rotary kiln manufacturer, Zhengzhou Taida, Henan construction material customer purchased a whole set of silica sand triple-pass dryer to fulfill final production aim. The picture shown above presents the real working condition of Taida lime rotary kiln.
Raw material: dry mortar
Output capacity：10T/H
20TPD Qatar Sand Production Site
Energy-saving triple-pass dryer is suitable to deal with various mineral materials such as silica, sand, ore poweder and etc. Although the moisture of sand is not high, it is difficult to reduce the inner water in it. Based on customer's real situation, we customized a whole set of sand triple-pass drying system. After arriving, we arrange professional engineer to guide installation for customer.
Raw material：sand
Output capacity：20T/D
Technical Parameters
| Model（mm） | Inclination （%） | Rotary speed（r/min) | Max inlet temperature （℃） | Power （KW） | Capacity （t/h） |
| TDMGT600 | 3—5 | 3—8 | ≤850 | 3 | Capacity will be differetn for different materials. |
| TDMGT800 | 3—5 | 3—8 | ≤850 | 4 | |
| TDMGT1000 | 3—5 | 3—8 | ≤850 | 5.5 | |
| TDMGT1200 | 3—5 | 3—8 | ≤850 | 11 | |
| TDMGT1500 | 3—5 | 3—8 | ≤850 | 15 | |
| TDMGT1800 | 3—5 | 3—8 | ≤850 | 18.5 | |
| TDMGT2000 | 3—5 | 3—8 | ≤850 | 22 | |
| TDMGT2200 | 3—5 | 3—8 | ≤850 | 30 | |
| TDMGT2400 | 3—5 | 3—5 | ≤850 | 37 | |
| TDMGT2600 | 3—5 | 3—5 | ≤850 | 40 | |
| TDMGT2800 | 3—5 | 3—5 | ≤850 | 55 | |
| TDMGT3000 | 3—5 | 3—5 | ≤850 | 75 | |
| TDMGT3200 | 3—5 | 3—5 | ≤850 | 90 | |
| TDMGT3400 | 3—5 | 3—5 | ≤850 | 110 | |
| TDMGT3600 | 3—5 | 3—5 | ≤850 | 150 | |
| TDMGT4000 | 3—5 | 1.5—5 | ≤850 | 190 | |
| TDMGT4200 | 3—5 | 1.5—5 | ≤850 | 200 | |
| TDMGT4500 | 3—5 | 1.5—5 | ≤850 | 260 |
