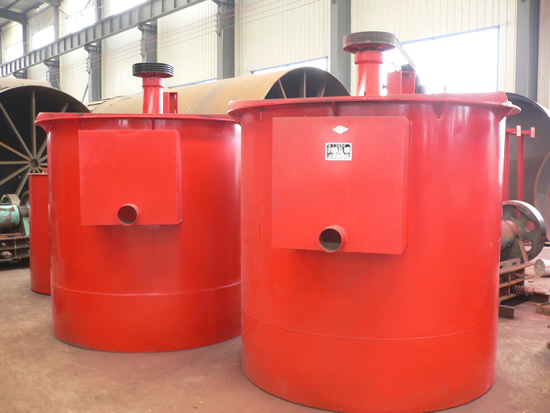

Mixing Barrel
Specifications：
Advantages: compact structure, good sealing performance; uniformly mixing;
Applications: widely applied to beneficiation and chemical industry;
Application Range：/UpFiles/Article/2010/10/4/thumb_2010100432764813.pdf
Applicable Materials：/UpFiles/Article/2010/10/4/thumb_2010100432771657.rar
Driven by V-belt drive motor rotating impeller
Applies to mineral dressing industry, as well as mixing of chemical ingredients
Working Principle
Latest Delivery
Project Case
Technical Parameters
|
Specification |
Chute inner dimension | Effictive cubage | Mixer | Motor | Weight(kg) | |||
| Diameter(mm) | Depth | (m3) | Diameter(mm) | Rotate speed(r/min) | Model | Power(kw) | ||
| (mm) | ||||||||
| XB-750 | 750 | 750 | 0.26 | 240 | 530 | Y90S-4 | 1.1 | 228 |
| XB-1000 | 1000 | 1000 | 0.58 | 240 | 530 | Y90L-4 | 1.5 | 436 |
| XB-1200 | 1200 | 1200 | 1.14 | 400 | 320 | Y100L2-4 | 3 | 765 |
| XB-1500 | 1500 | 1500 | 2.2 | 400 | 320 | Y100L2-4 | 3 | 1083 |
| XB-2000 | 2000 | 2000 | 5.46 | 550 | 230 | Y132M2-6 | 5.5 | 1671 |
| XB-2500 | 2500 | 2500 | 11.2 | 650 | 200 | Y160L-6 | 11 | 3438 |
| XB-3000 | 3000 | 3000 | 19.1 | 700 | 210 | Y225S-8 | 18.5 | 4613 |
| XB-3500 | 3500 | 3500 | 30 | 850 | 230 | Y225M-8 | 22 |
71 |
Applicable Materials

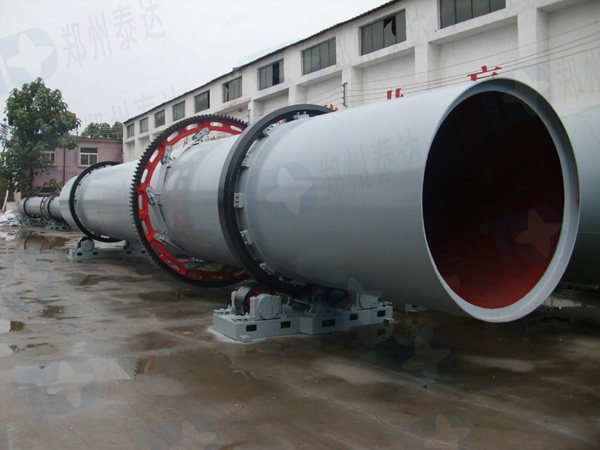

Sludge Rotary Kiln

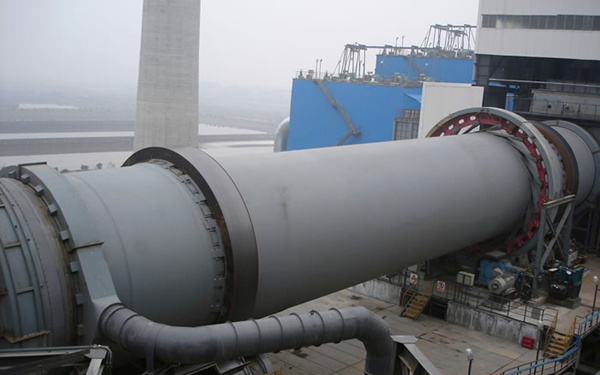

Limestone kiln Furnace
